The LYNX series pump is perfect for small volume users, for synthetics, gear oils, and standard mineral oils.
The 1:1 version is best for higher volume with short distance requirements such as oil bars, tapper pumps and medium to light viscosity oils pumping short distances.
Fluids
• Synthetic and mineral based lubricants
• Hydraulic fluid
• Transmission fluid
• Anti-freeze/windshield wash fluids (stainless steel version 1160-008)
Applications
• Tapper pumps
• Oil bar supply (pumping short distance)
• Roll-around synthetic or mineral oil packages • Medium volume dispensing in agricultural, in-plant, and maintenance shop applications
View the complete line of LYNX 1:1 products
| Pump Specifications 1110-010 & 1110-009 |
Pump ratio
|
1:1 |
| Operating air pressure range |
45 – 150 PSI (3– 0 bar) |
Pump delivery with SAE
10W-30 oil, 68º F, at 150 PSI (10 bar)
air pressure and free flow |
10.6 gal/m (40 l/m) |
Air inlet
|
1/4″ NPT (F) |
| Pump outlet |
3/4″ NPT (F) |
| Pump air piston diameter |
1 3/8” (35 mm) |
| Wetted materials |
Steel, Brass, Aluminum, Buna-N™, Polyurethane
|
| |
|
| Pump Specifications 1160-008 |
|
Pump ratio
|
1:1 |
| Operating air pressure range |
45 – 150 PSI (3– 0 bar) |
Pump delivery with SAE
10W-30 oil, 68º F, at 150 PSI (10 bar)
air pressure and free flow |
10.6 gal/m (40 l/m) |
Air inlet
|
1/4″ NPT (F) |
| Pump outlet |
3/4″ NPT (M) |
| Pump air piston diameter |
1 3/8” (35 mm) |
| Wetted materials |
Stainless Steel, Viton, and PTFE
|

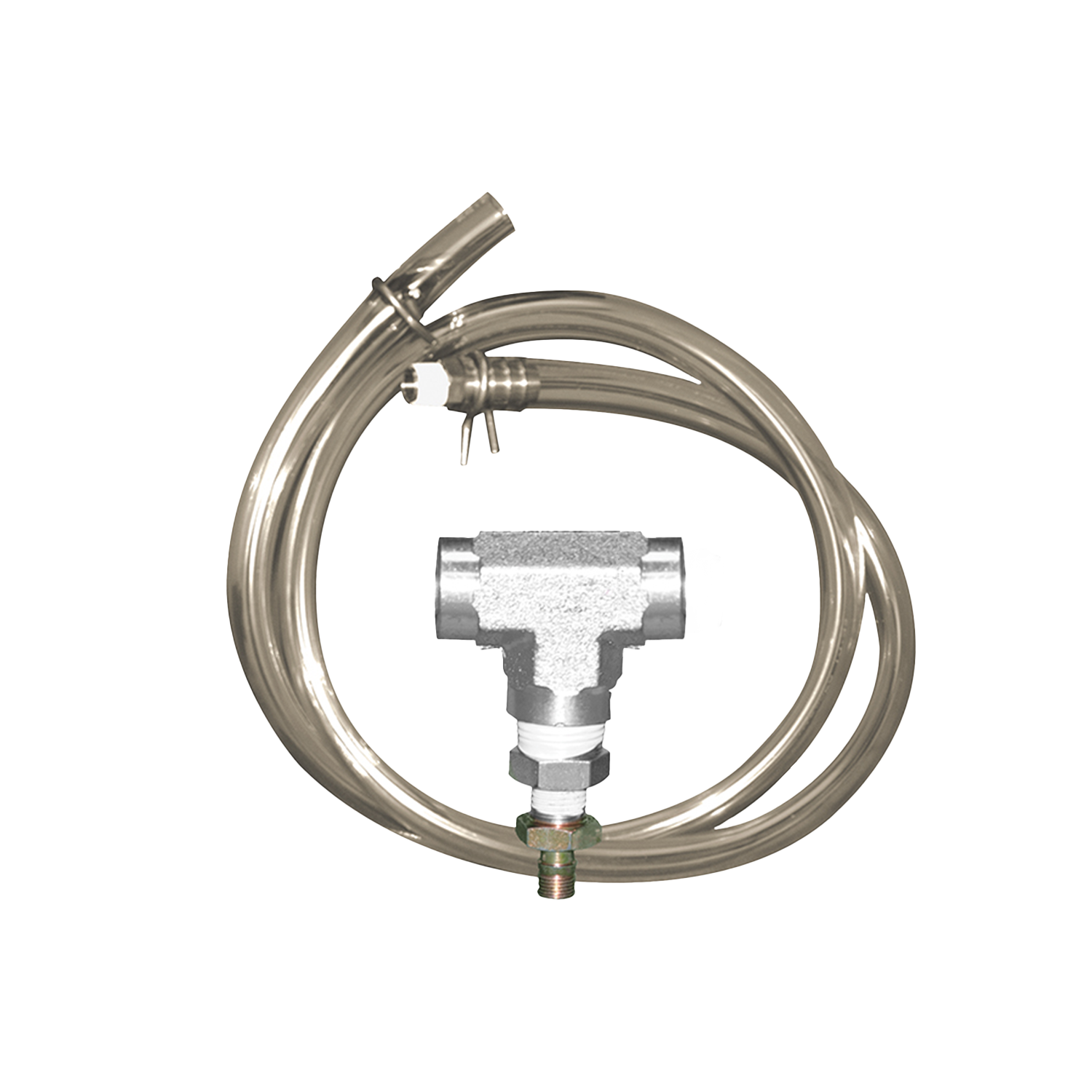

NOTE: Thermal expansion of the fluid in a distribution system can cause an increase in system pressure that can damage lubrication system components. Use pressure relief valve kit 3120-086 for this pump.
(1) Ensure that all hose fittings and piping are rated for fluid outlet pressures. Balcrank recommends a minimum of 3x safety factor.
Warning! Do not use any LYNX® series products with flammable fluids.
Verify fluid compatibility with MSDS sheets.
Contact Balcrank for specific system design performance and technical data.
