Balcrank offers electric cord reels, light cord reels, and utility reel accessories. Light Cord Reels are designed for use in dealerships, truck and bus maintenance facilities, municipalities, and more.
  • Multi- positioning Outlet Arm – provide ease of changing from ceiling to base mount: five positions for any application and mounting configuration.
  • Easy spring tension can be adjusted on site by adding or removing cord wraps easily from the reel.
  • Industrial grade collector ring, replaceable carbon brushes, and brass transfer rings
  • Adjustable ball stop allows user to set height of the retracting cord
  • 5.5’ power inlet cord with grounded plug
  • All reels feature SJTO Cord.  Cord is rated to 300 volts and has a temperature range of –20ºC to 60ºC

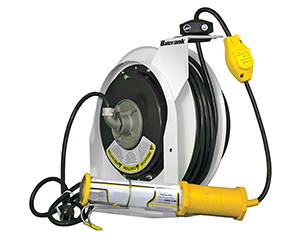

2510-017 REEL, LIGHT, STUBBY II W/TAP

Cord Length 50' (12.25 m)
Gauge 16/3 SJTO
Inlet Cord 5.5' (1.67 m) 16/3 SJTO
Plug NEMA 5-15P Grounded
Amps 12
Lamp
13 watt fluorescent - impact resistant
Receptacle NEMA 5-15R Locking
Indoor use only - Dry Locations




  • Ready to Buy?
    You are not currently logged in. Please log in to obtain pricing and availability.
    Qty: Spin UpSpin Down

    Item#: 2510-017
